Webhooks

Webhooks are API push notifications sent in the form of HTTP or HTPS POST requests. They pro-actively deliver messages to other applications when some event occurs inside their own application.

They can inform or trigger further events in the destination application. For instance, you can directly deploy an application upon the image push. This allows you to automate your deployments.

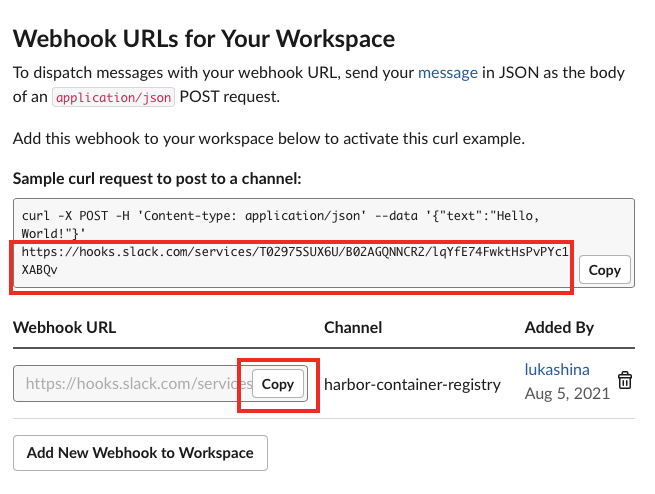

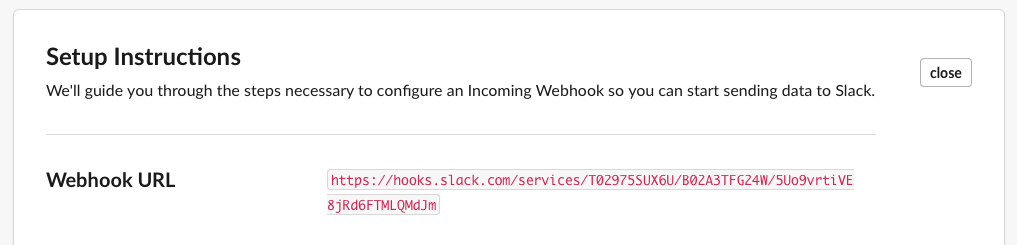

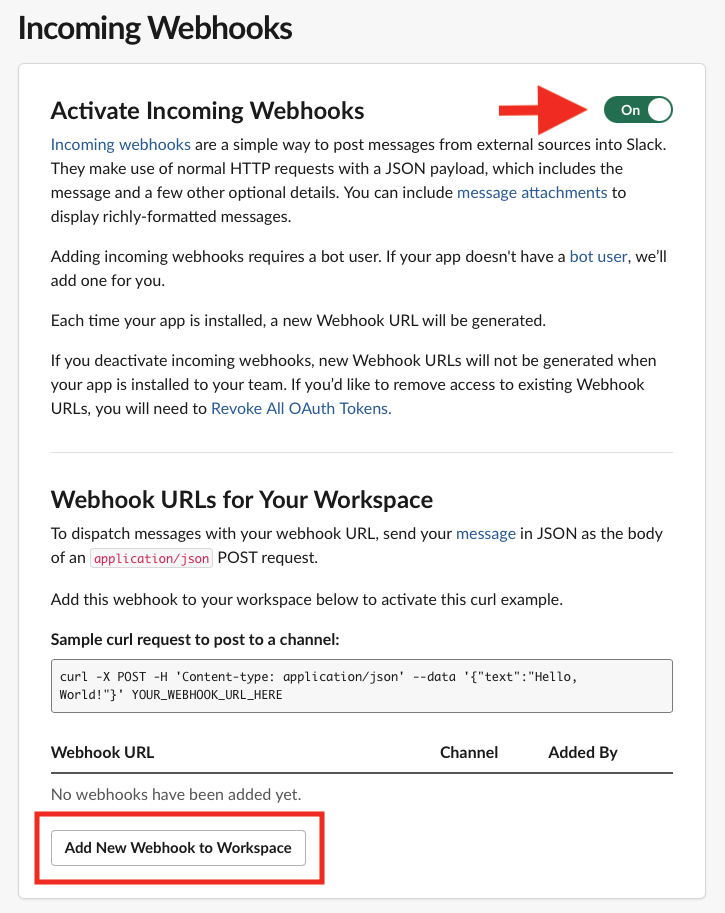

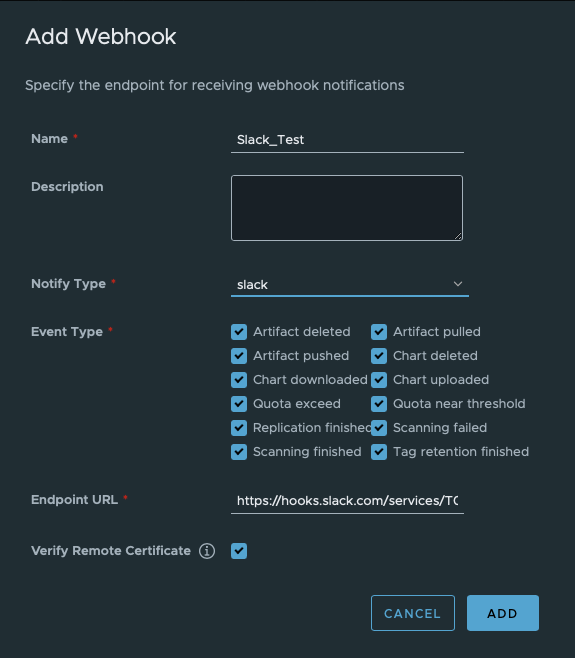

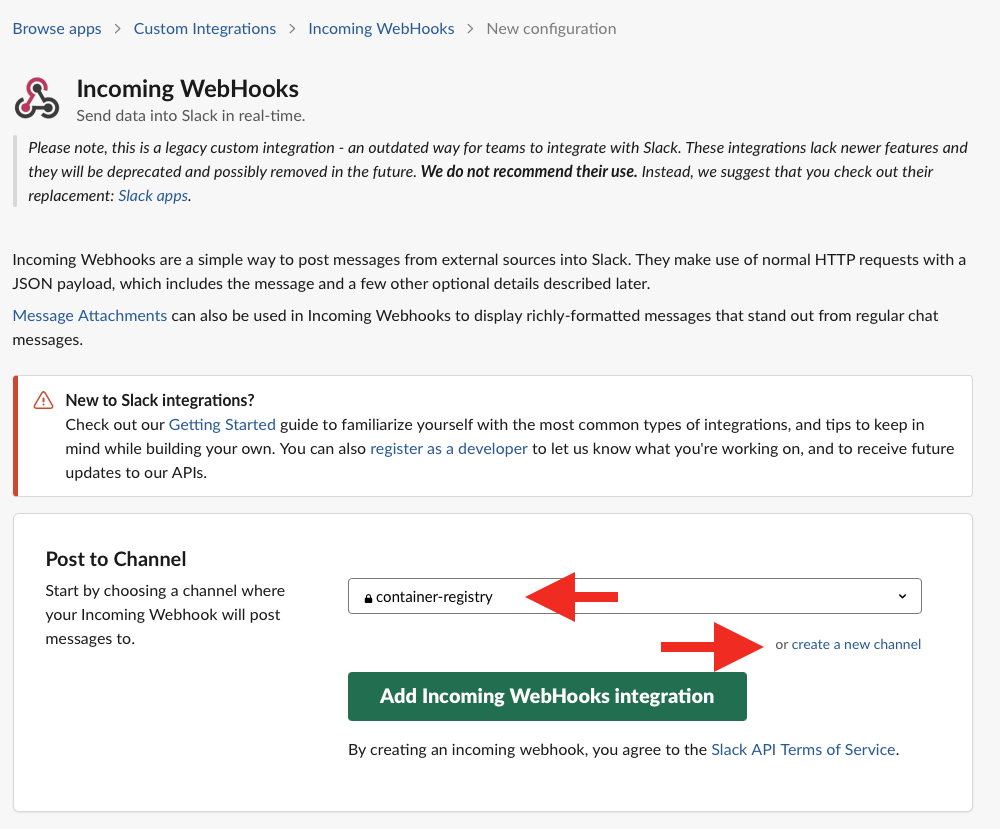

In Container Registry, you can add either an HTTP or Slack-based HTTPS URL that will be used for receiving the messages by the target application.

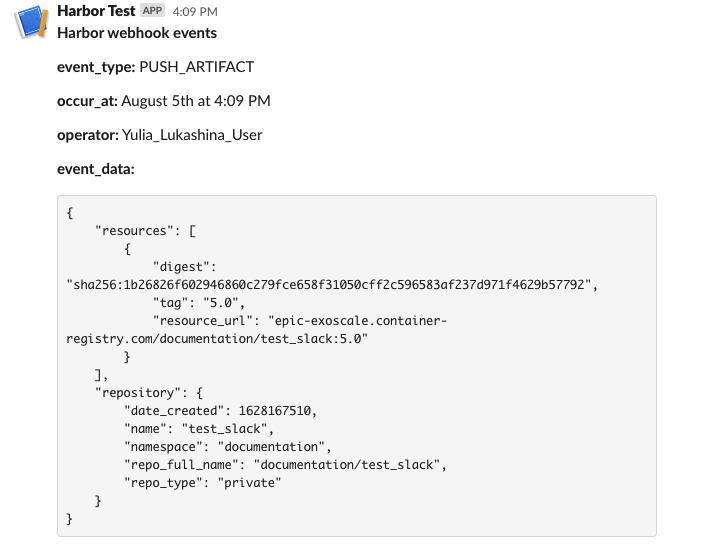

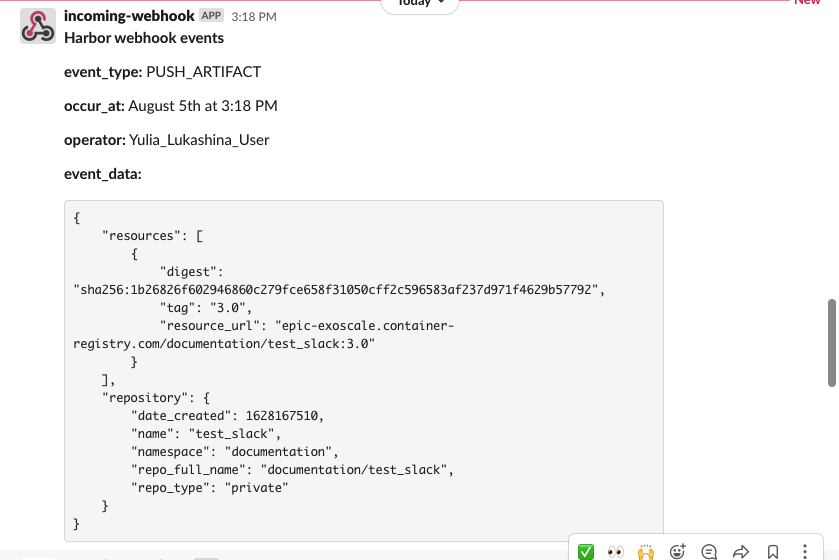

All incoming messages (payloads) will be in JSON format. Below is an example from the push artifact event message:

{
    "type": "PUSH_ARTIFACT",
	"occur_at": 1586922308,
	"operator": "username",
    "event_data":{
        "resources": [
            {
                "digest": "sha256:1b26826f602946860c279fce658f31050cff2c596583af237d971f4629b57792",
                "tag": "5.0",
                "resource_url": "epic-exoscale.container-registry.com/documentation/test_slack:5.0"
            }
        ],
        "repository": {
            "date_created": 1628167510,
            "name": "test_slack",
            "namespace": "documentation",
            "repo_full_name": "documentation/test_slack",
            "repo_type": "private"
        }
    }
}

Every event that can trigger a webhook, the event type sent in the notification, and what the notification contains.

The table contains the details about available webhook triggers and what they do.

EventWebhook Event TypeContents of Notification
Push artifact to registryPUSH_ARTIFACTRepository namespace name, repository name, resource URL, tags, manifest digest, artifact name, push time timestamp, username of user who pushed artifact
Pull artifact from registryPULL_ARTIFACTRepository namespace name, repository name, manifest digest, artifact name, pull time timestamp, username of user who pulled artifact
Delete artifact from registryDELETE_ARTIFACTRepository namespace name, repository name, manifest digest, artifact name, artifact size, delete time timestamp, username of user who deleted image
Upload Helm chart to chartMuseumUPLOAD_CHARTRepository name, chart name, chart type, chart version, chart size, tag, timestamp of push, username of user who uploaded chart
Download Helm chart from chartMuseumDOWNLOAD_CHARTRepository name, chart name, chart type, chart version, chart size, tag, timestamp of push, username of user who pulled chart
Delete Helm chart from chartMuseumDELETE_CHARTRepository name, chart name, chart type, chart version, chart size, tag, timestamp of delete, username of user who deleted chart
Image scan completedSCANNING_COMPLETEDRepository namespace name, repository name, tag scanned, image name, number of critical issues, number of major issues, number of minor issues, last scan status, scan completion time timestamp, vulnerability information (CVE ID, description, link to CVE, criticality, URL for any fix), username of user who performed scan
Image scan failedSCANNING_FAILEDRepository namespace name, repository name, tag scanned, image name, error that occurred, username of user who performed scan
Project quota exceededQUOTA_EXCEEDRepository namespace name, repository name, tags, manifest digest, artifact name, push time timestamp, username of user who pushed artifact
Project quota near thresholdQUOTA_WARNINGRepository namespace name, repository name, tags, manifest digest, artifact name, push time timestamp, username of user who pushed artifact
Artifact replication finishedREPLICATIONRepository namespace name, repository name, tags, manifest digest, artifact name, push time timestamp, username of user who triggered the replication

You can use any combination of them or all triggers.
